Motorola DEP570E
Digital/explosion-proof intercom
The Motorola DEP570E digital intercom redefines the way offices and employees collaborate, helping you achieve greater productivity, safety, and cost-effectiveness.

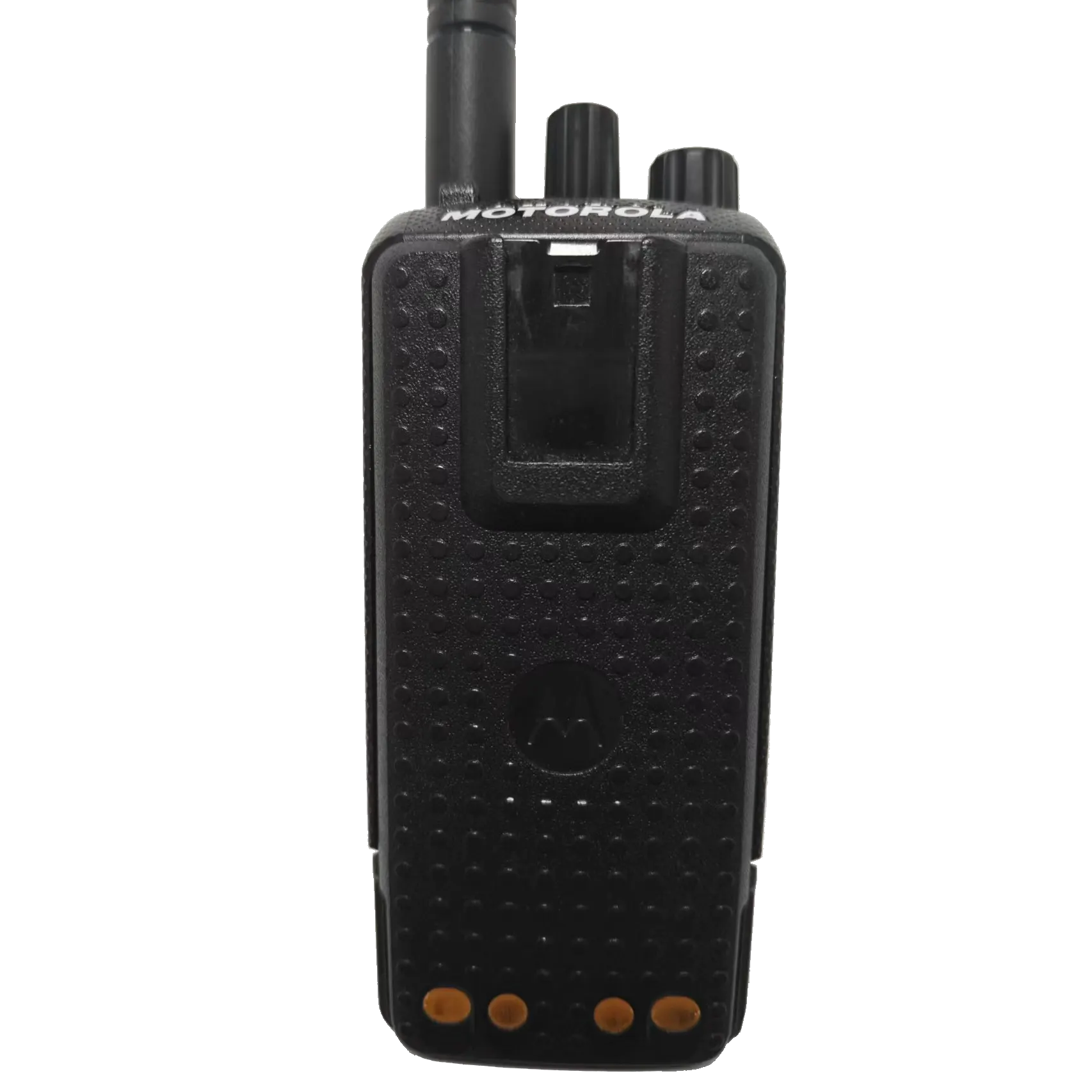

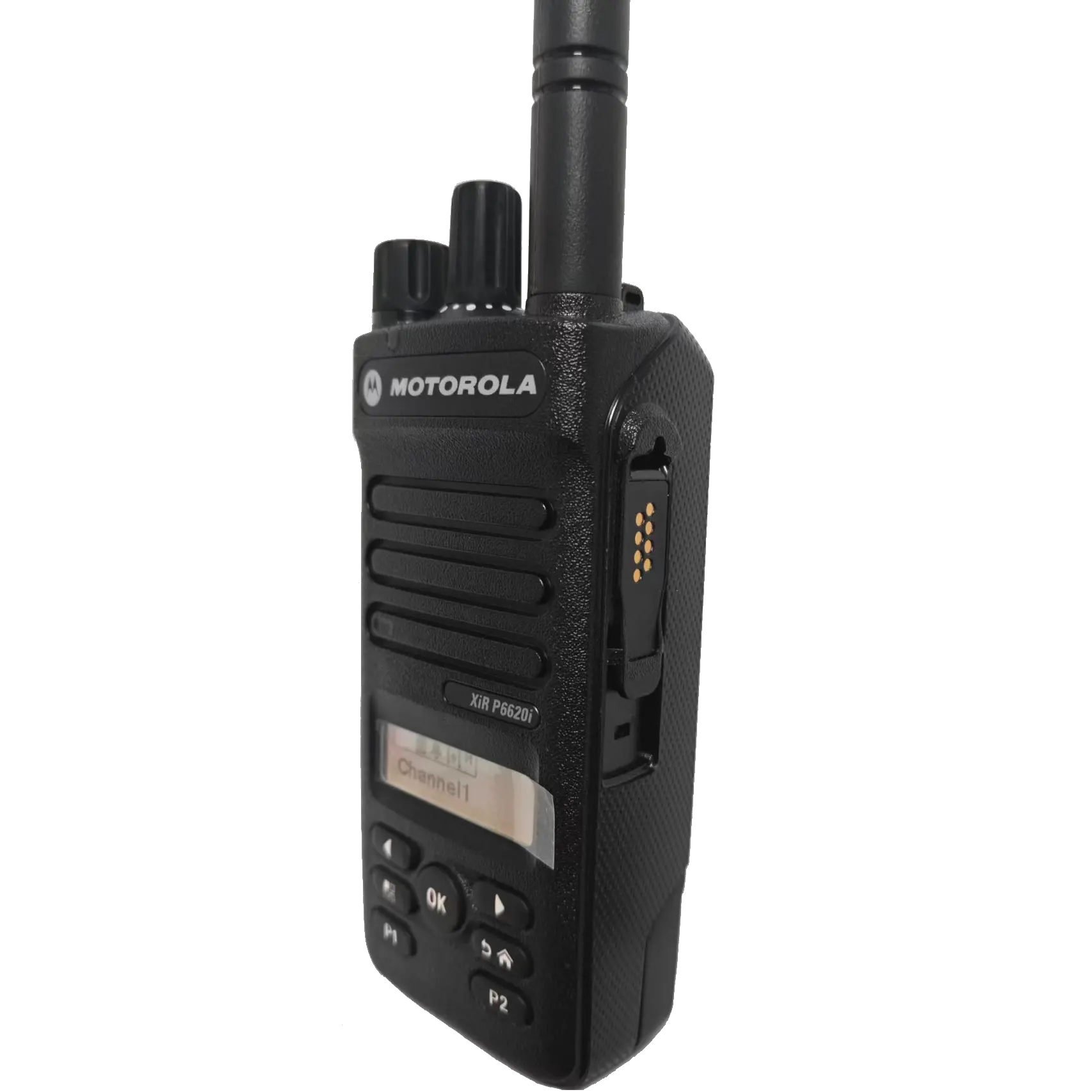

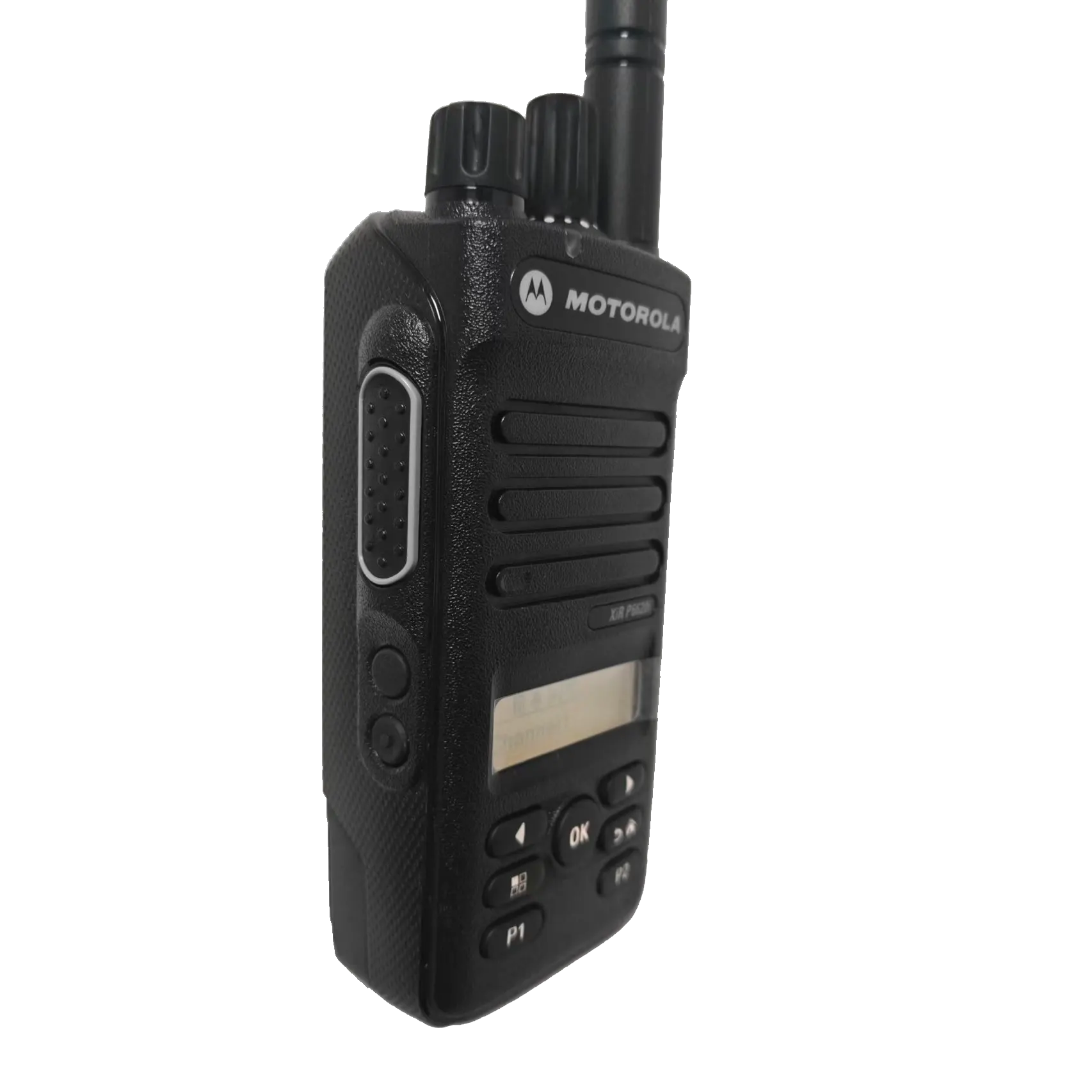

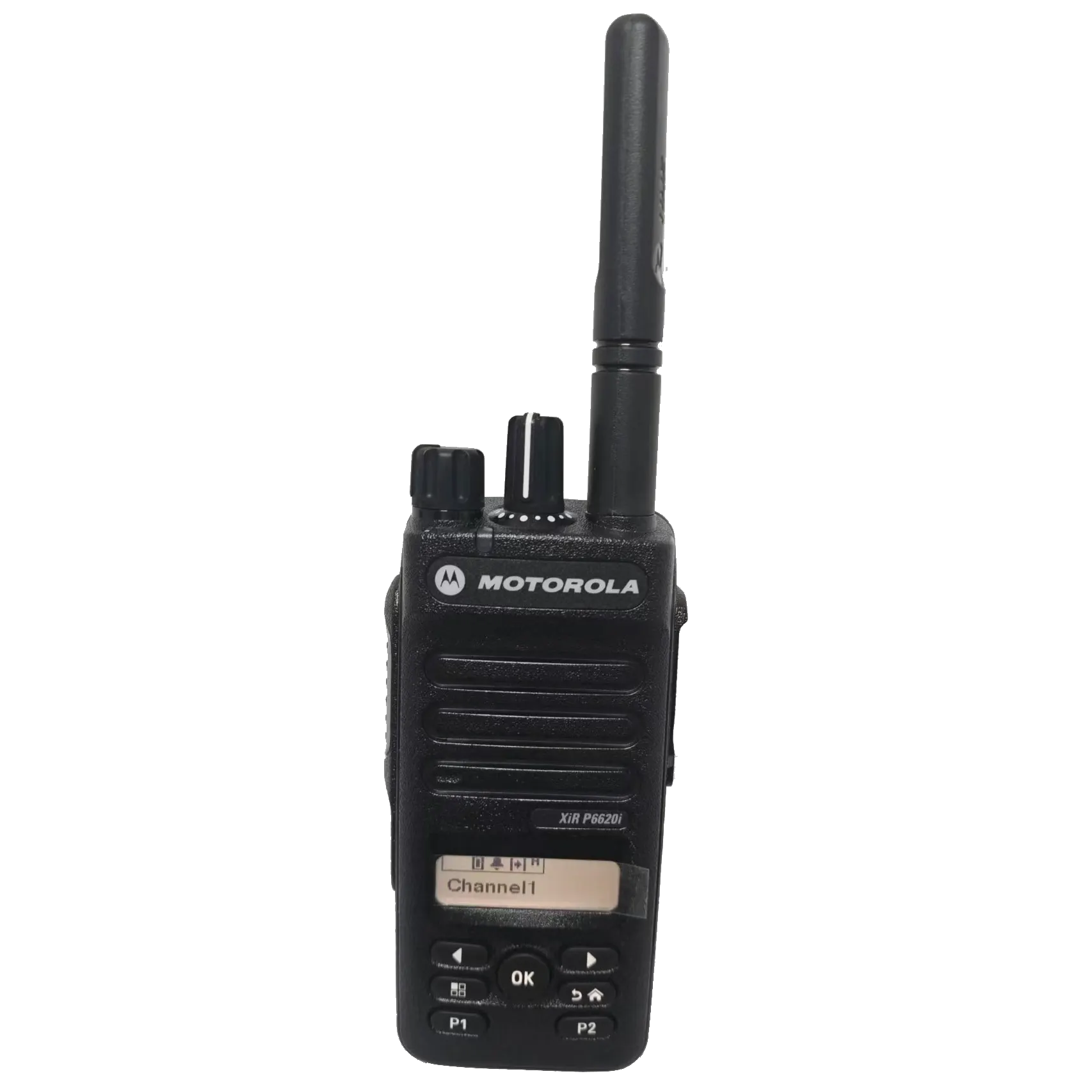

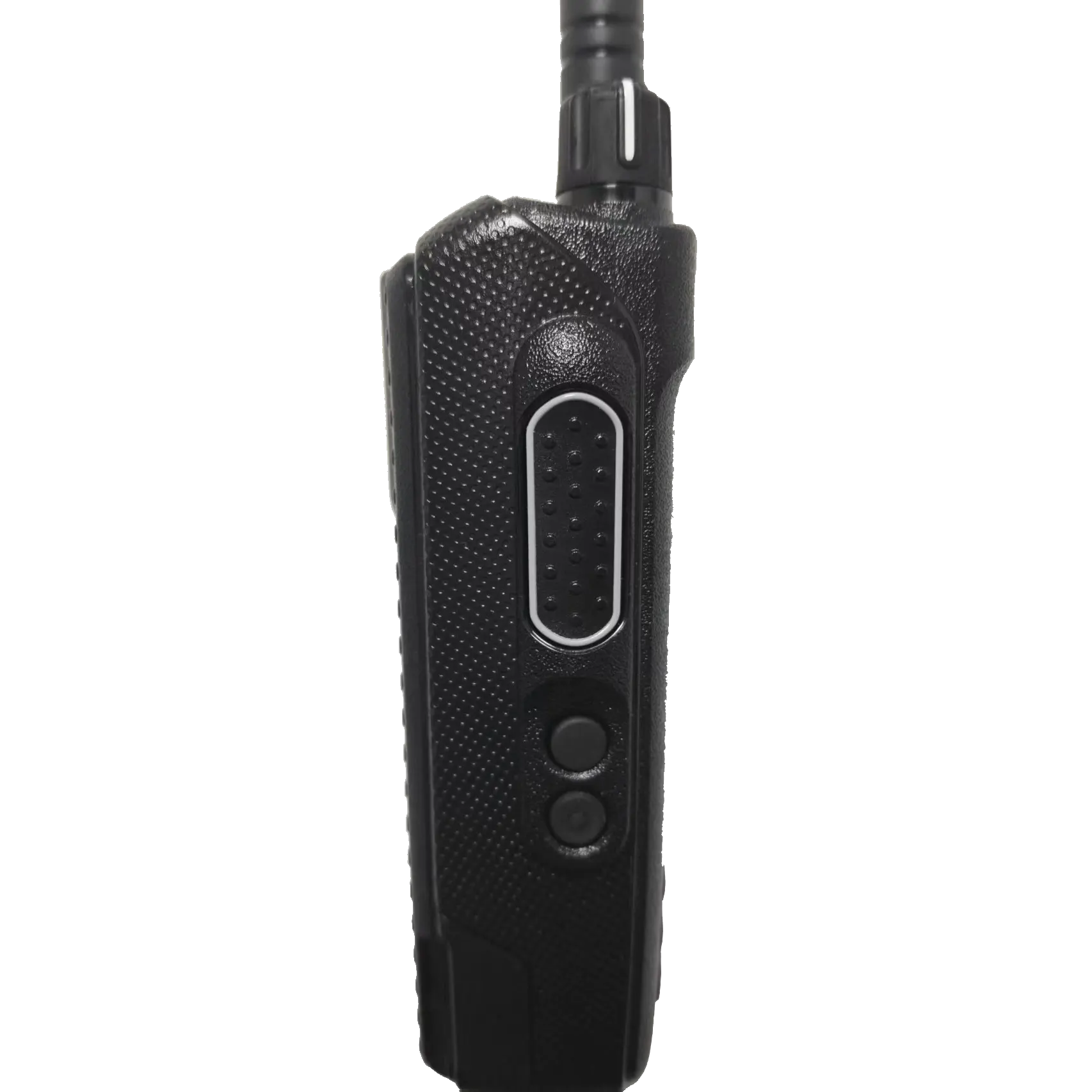

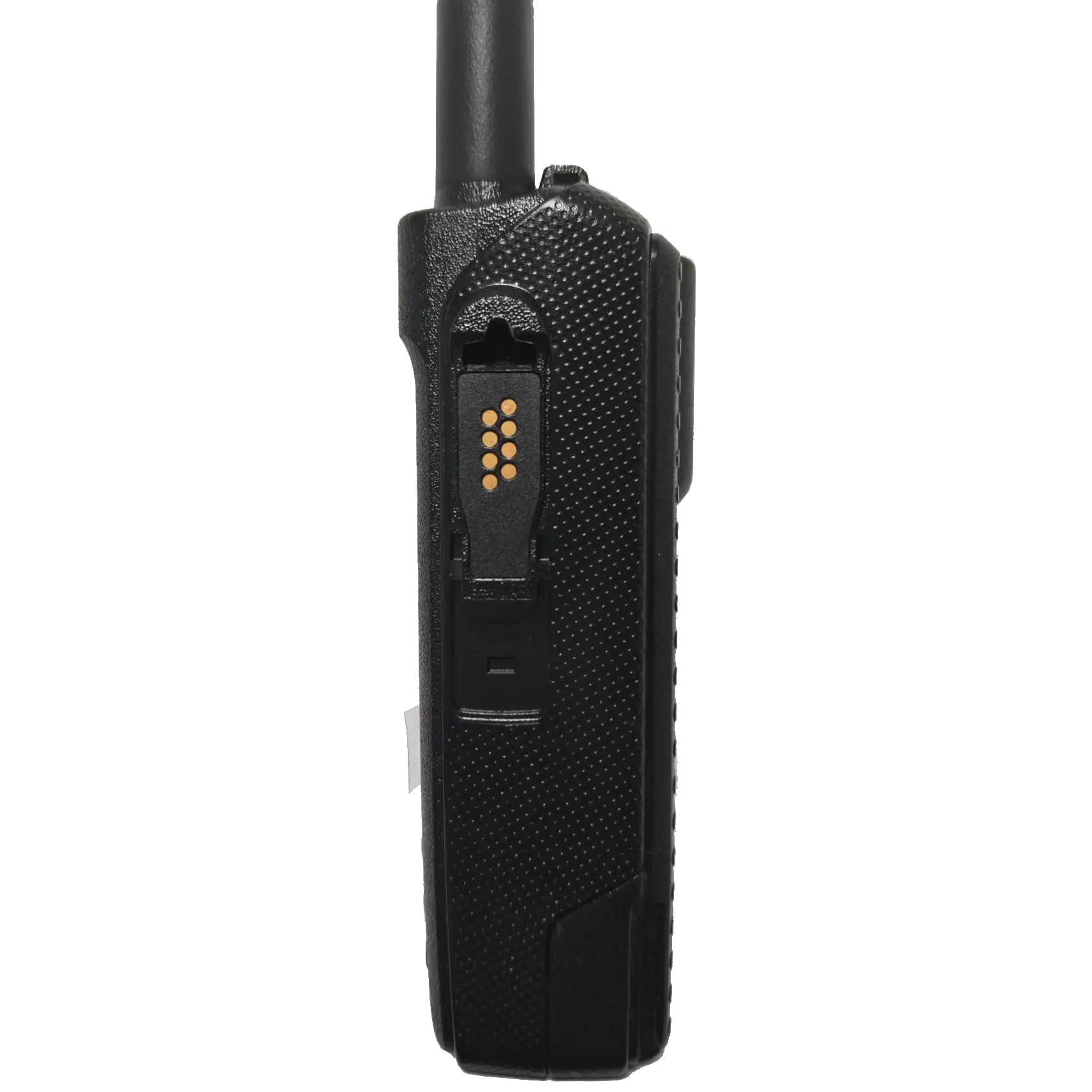

InquiryHighlights of Motorola DEP570E
Compatible with both analog and digital
Compatible with existing analog systems, ensuring a smooth transition from analog to digital products and reducing system upgrade costs.
Upgraded voice and data
Using TDMA digital technology, it can provide twice the call capacity of analog walkie-talkies, and the voice communication is clearer; it features intelligent audio function, which can automatically adjust the volume according to the ambient noise. In terms of battery performance, after being fully charged, this series of walkie-talkies can operate for 40% longer than analog walkie-talkies.
Smart audio
The volume of the walkie-talkie can be automatically adjusted to compensate for background noise, so that workers can avoid missing calls in noisy environments or disturbing others in quiet areas without having to adjust the volume of the walkie-talkie. Enhanced background noise suppression helps filter out unwanted external noise, from the rumble of forklifts to the clamor of school hallways. In addition, the IMPRESTM audio accessory enhances noise suppression and improves voice clarity, making the accessory smarter than ever before.
Rich functions
Voice prompts confirm the functions of channels, zones, and programmable buttons through sound. With 4 programmable buttons, you can set the button functions according to your actual needs.
Ultra-large capacity and wide coverage
In the direct mode, dual time slots allow simultaneous calls. The IP Site Connect system creates a wide area network by utilizing the Internet to expand the coverage area, either by extending the coverage of a single base station or by connecting geographically dispersed base stations together, thereby greatly improving customer service and enhancing productivity. The intelligent channel sharing system is called Capacity Plus Single Site. The multi-base station intelligent channel sharing system is called Capacity Plus Multi Site (also known as "Linked Capacity Plus"). Therefore, whether you prefer a single base station or multiple base stations, MOTOTRBO can meet your business and budget needs.
Safety
It is IP67 rated for water and dust resistance, and can be immersed in water up to 1 meter deep for 30 minutes. Equipped with a drop-resistant casing (tested to withstand a 1.5-meter concrete drop), it features an intrinsically safe design, has passed chemical explosion-proof certification, and is suitable for oil and gas storage and transportation scenarios. It also incorporates a fall-to-ground alarm, forced transmission interruption, emergency alarm, and remote kill/remote activation intercom functions.
Q1:
Does the P6620i have an explosion-proof version?
A1:
The P6620i is available in an explosion-proof version, compliant with the North American TIA-4950 explosion-proof certification (UL), and comes standard with the PMNN4490 explosion-proof battery.
Explosion-proof markings: Ex ib IIB T4 Gb, Ex ibD 21 T130°C.
Q2:
Is there a difference between the over-the-air programming of the Motorola-DEP570E and the Motorola-DGP8550E?
A2:
The P66i series uses traditional RF-OTAP technology (radio frequency over-the-air programming), which is significantly slower compared to the Motorola-DGP8550E, which uses WiFi for over-the-air programming.
Specifications of Motorola DEP570E
General
Environmental
General
| Power | UHF：1~4W；VHF：1~5W；350兆：1~4W |
| Battery | 2900 mAh |
| Channel Spacing | 12.5kHz/25kHz |
| Digital Agreement | ETSI TS 102 361-1，-2，-3 |
| Channel Capacity | 256 |
| Keyboard and Screen | Half-screen & limited keyboard |
| Frequency Range | UHF：403~527MHz；VHF：136~174MHz； |
| Dimensions(H×W×D) mm | 122*56*42mm |
| Operating Voltage | 7.5V |
| Battey Life | UHF: Digital 14.4 hours, Analog 10.7 hours; VHF: Digital 14.4 hours, Analog 10.7 hours; |
| Digital vocoder type | AMBE+2™ |
| Digital standard | DMR |
| Weight | 309g |
Environmental
| Dust & Water Protection | IP67 |
| Military Standard | MIL-STD 810 |
* The average battery life under 5/5/90 working cycle, carrier squelch, and high-power transmission mode. The actual observed battery life may vary.
* The high-power output of the explosion-proof intercom model, certified by the National Supervision and Inspection Center for Explosion-proof Electrical Product Quality, is 3.5W.
*In explosive environments, it is prohibited to use batteries, accessories, components, and their substitutes that have not been specifically certified for use with explosion-proof intercoms. Additionally, it is forbidden to disassemble or replace the batteries and accessories of explosion-proof intercoms, nor to charge the battery pack in such environments.
Only specialized low-temperature batteries are required for operation of walkie-talkies at temperatures below -10°C. Specifications may change without notice. The specifications shown are typical.
